Comprehensive Test System for VW 80000, LV124, ISO 16750, ISO 7637, and More.

Low Voltage Test Systems for 12V, 24V, and 48V Vehicle Electrical Systems:

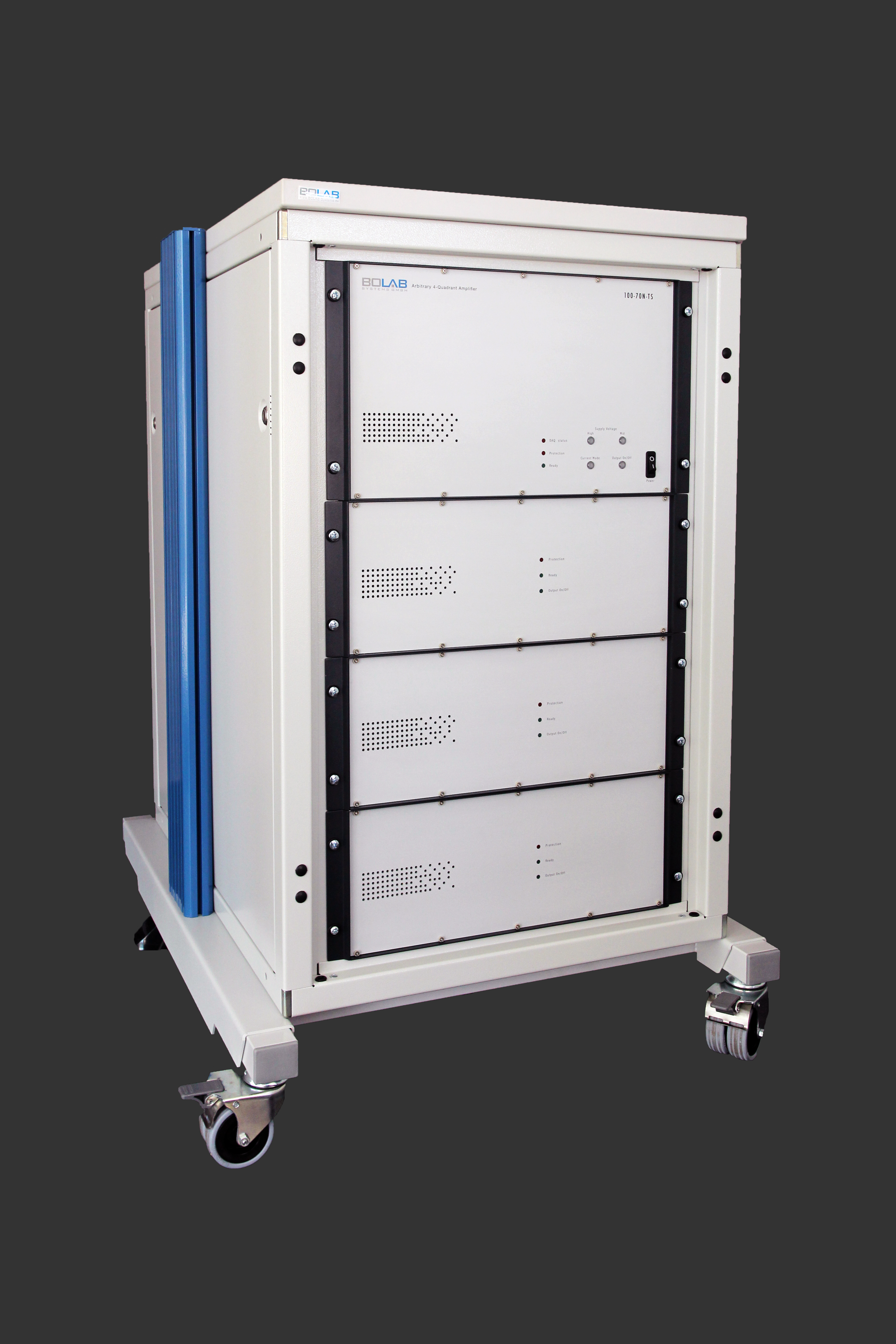

Low Voltage Test System LV124, VW80000

BOLAB's High-Performance Low Voltage Test Systems

BOLAB's low-voltage test systems are designed to meet the specific testing requirements of 12V, 24V, and 48V electrical systems in various applications, ensuring compliance with the VW 80000, LV 124, ISO 16750, ISO 7637 and other standards. These systems offer unmatched flexibility, precision, and reliability, making them the ideal choice for testing electronic components and ensuring their performance and safety. Equipped with advanced features and capabilities, BOLAB's low-voltage test systems empower users to effortlessly conduct a wide range of tests. Automotive professionals worldwide trust BOLAB's low-voltage test systems for their superior performance and quality.

Request detailed information

FIS - Fast Interrupt Switch 100-200

DC-100 kHz | 200 A | 100 V

KEY FEATURES:


  • For LV 124, LV 148, VDA 320, ISO 21780, etc.
  • High current power stage (unidirectional, up to 100 V input)
  • Output current up to 200 A DC
  • Low output impedance (<1 mOhm) & fast switching speed (<100 ns)
Learn more

BOLAB Test Systems - Flexibility through Modularity

4-Quadrant-Amplifer

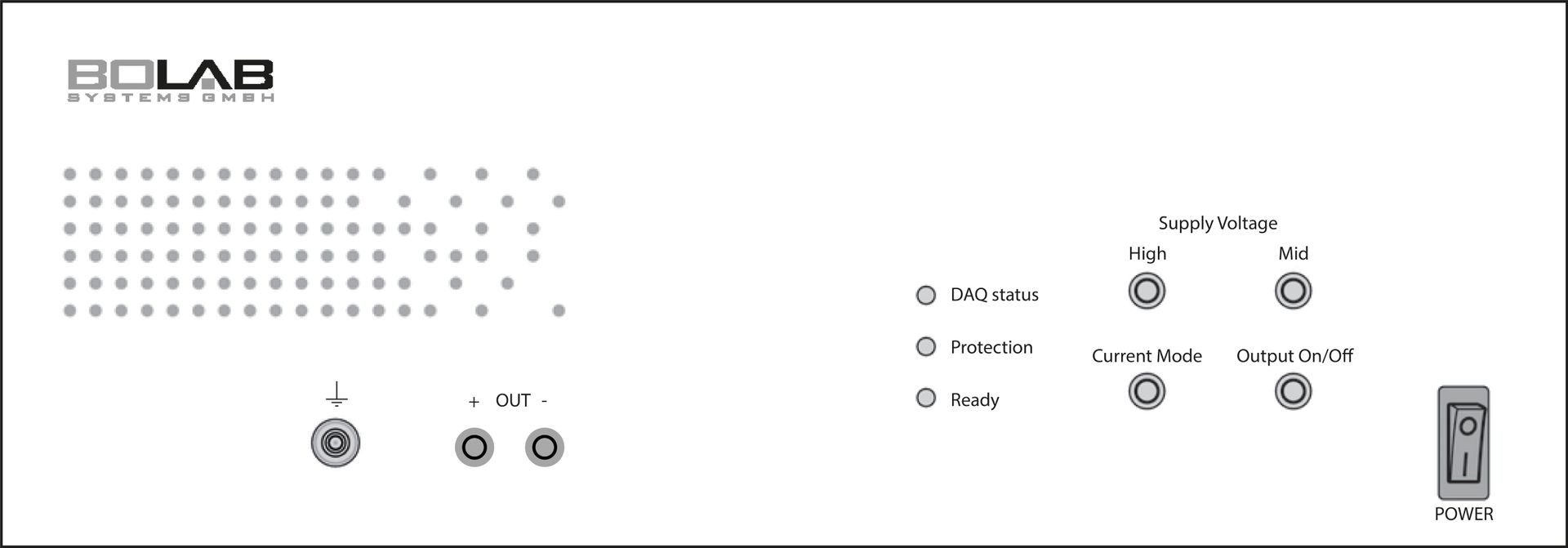

LV124, ISO 16759
Modular Test System

500 W (3U)

Request detailed information

1 kW (4U)

Request detailed information

Modular System, expandable from 2 kW to 54 kW


modularly extendable up to 54 kW (each module: 1.000 W, -30 V ... +70 V, 38 A)

Modular Design, Unlimited Signal Waveforms
Request detailed information

DC ... 500 kHz | Up to 1500 A | Up to 54 kW | modularly scalable

For Example:

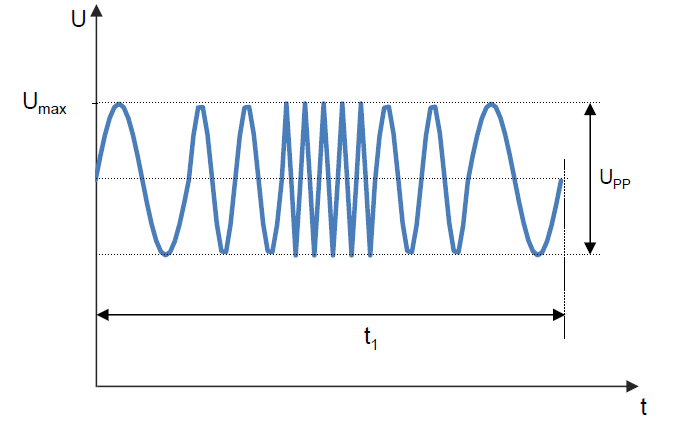

E-06 Superimosed alternating voltage

E-06 Superimposed alternating voltage

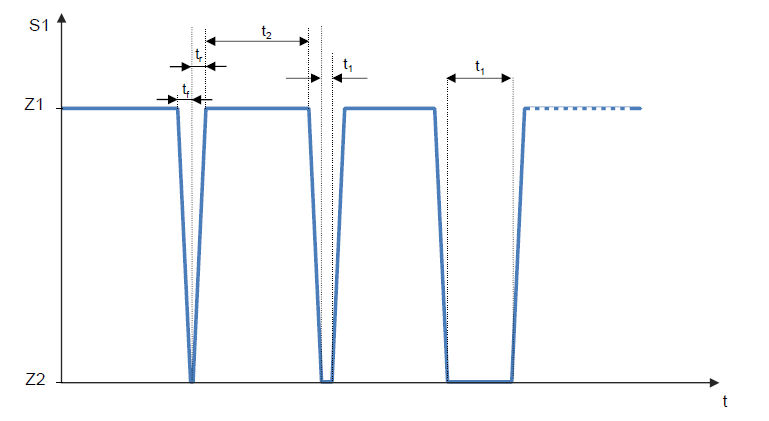

E-10 Short interruptions

E-10 Brief interruptions

etc.

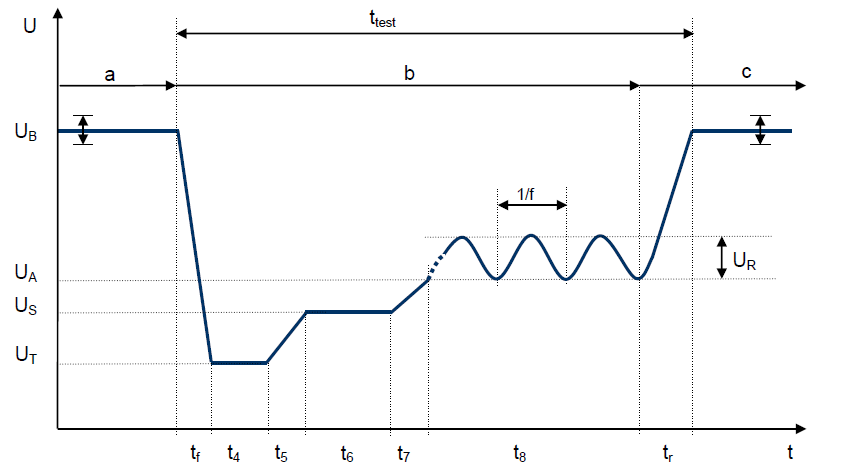

E-11 Start pulses

E-11 Start pulses

Executed with BOLAB Systems Wave Master Software:

Imported real waveform

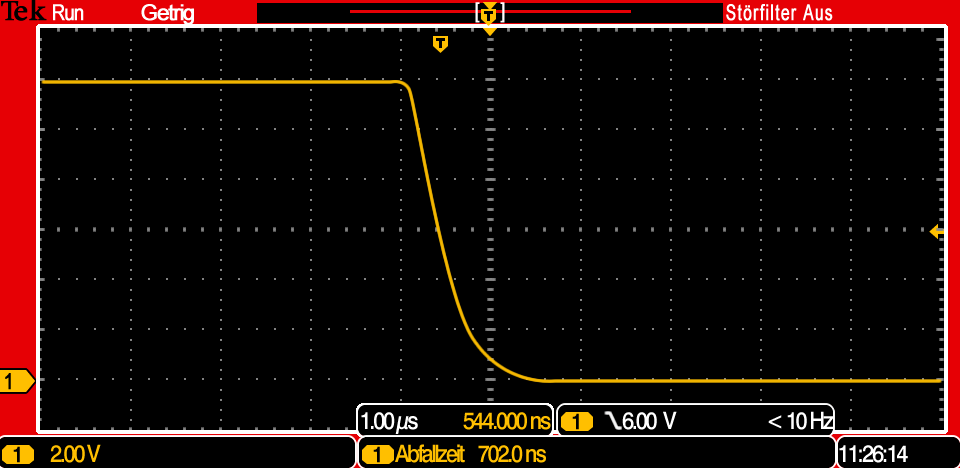

Imported real waveform out of an oscilloscope

JLR-EMC-CS CI 250

Example out of JLR-EMC-CS CI 250

More Information about WaveMaster
E-09 Reset behavior

E-09 Reset behavior

All in one solution

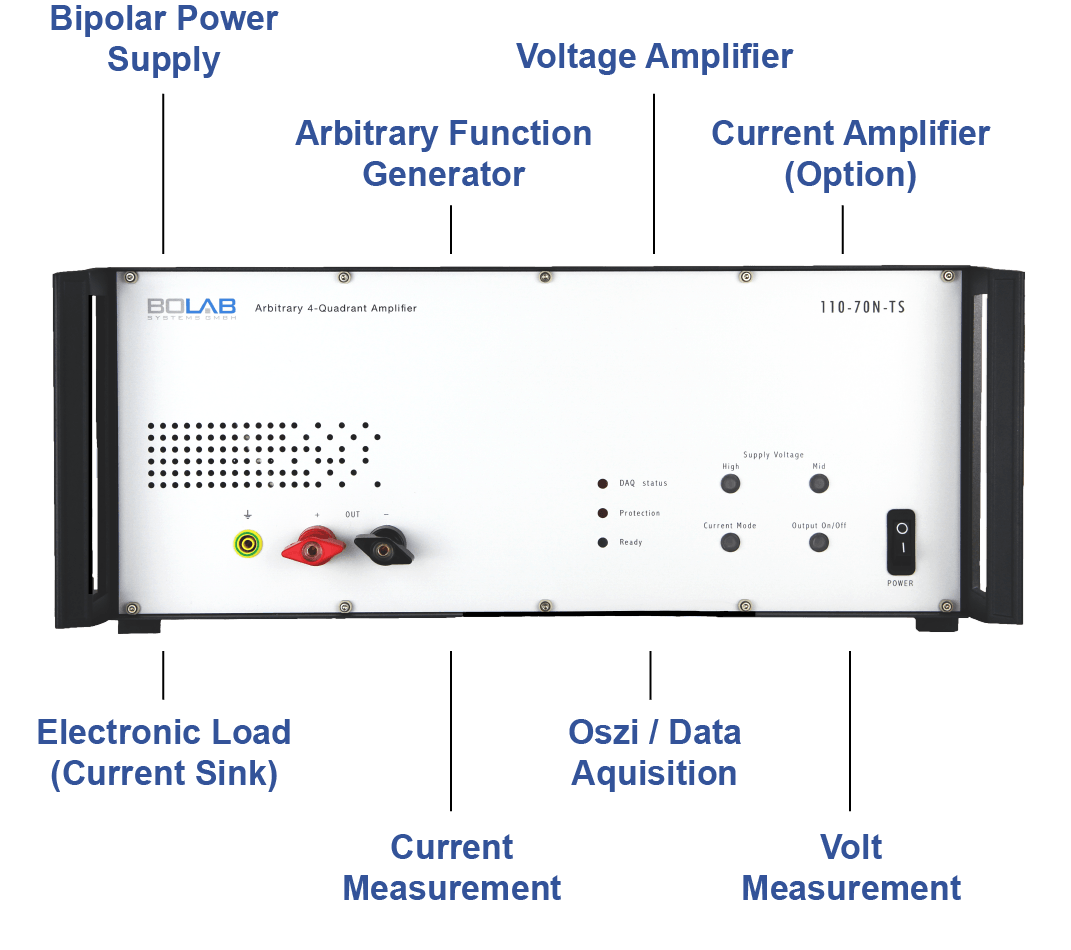

BOLAB arbitrary 4-Quadrant Amplifier
  • Protocol reports
  • Generation of waveforms with synchronous data aquisition
  • Modular Expandable
  • Individual Waveform Generation
  • Standard Libraries included
  • Unlimited Waveform size
  • 2 different Waveforms synchronously
  • DLL's for LabView, Vector CANoe / CAPL, C#, C++, ANSI C, Python, etc.
  • Simulation of imported oszilloscope waveform




Rental equipment with immediate availability for

  • LV 124
  • LV 148
  • ISO 7637
  • VDA 320
  • ISO 16750
  • ISO 21780
  • JLR
  • GMW
  • PSA
  • Renault
  • etc.
Learn more
Standards
LV 124 ✔
LV 148 ✔
VDA 320 ✔
BMW GS 95024 ✔
BMW GS 95026 ✔
Mercedes MBN LV 124-1 ✔
Mercedes MBN LV 148 ✔
Volkswagen VW 80000 ✔
JLR ✔
PSA ✔
GMW ✔
ISO 16750-2 ✔
ISO 21780 ✔
ISO 7637 ✔
etc. ✔

Signal quality

Measurement
Models 35 V Voltage max. Voltage min. Current Output power Dimensions
105-35R-TS + 35 V - 30 V 20 A 400 W 3 U
110-35R-TS + 35 V - 30 V 40 A 1000 W 4 U
120-35R-TS + 35 V - 30 V 76 A 2000 W 14 U
130-35R-TS + 35 V - 30 V 114 A 3000 W 18 U
140-35R-TS + 35 V - 30 V 152 A 4000 W 22 U
150-35R-TS + 35 V - 30 V 190 A 5000 W 26 U
160-35R-TS + 35 V - 30 V 228 A 6000 W 30 U
180-35R-TS + 35 V - 30 V 304 A 8000 W 2 x 22 U
200-35R-TS + 35 V - 30 V 380 A 10000 W 2 x 26 U
220-35R-TS + 35 V - 30 V 456 A 12000 W 2 x 30 U
250-35R-TS + 35 V - 30 V 570 A 15000 W 3 x 26 U
280-35R-TS + 35 V - 30 V 684 A 18000 W 3 x 30 U
Models 70 V Voltage max. Voltage min. Current Output power Dimensions
105-70R-TS + 70 V - 30 V 15 A 500 W 3 U
110-70R-TS + 70 V - 30 V 40 A 1000 W 4 U
120-70R-TS + 70 V - 30 V 76 A 2000 W 14 U
130-70R-TS + 70 V - 30 V 114 A 3000 W 18 U
140-70R-TS + 70 V - 30 V 152 A 4000 W 22 U
150-70R-TS + 70 V - 30 V 190 A 5000 W 26 U
160-70R-TS + 70 V - 30 V 228 A 6000 W 30 U
180-70R-TS + 70 V - 30 V 304 A 8000 W 2 x 22 U
200-70R-TS + 70 V - 30 V 380 A 10000 W 2 x 26 U
220-70R-TS + 70 V - 30 V 456 A 12000 W 2 x 30 U
250-70R-TS + 70 V - 30 V 570 A 15000 W 3 x 26 U
280-70R-TS + 70 V - 30 V 684 A 18000 W 3 x 30 U
Models 75 V Voltage max. Voltage min. Current Output power Dimensions
105-75N-TS + 75 V - 75 V 11 A 500 W 3 U
110-75N-TS + 75 V - 75 V 40 A 1000 W 4 U
120-75N-TS + 75 V - 75 V 76 A 2000 W 14 U
130-75N-TS + 75 V - 75 V 114 A 3000 W 18 U
140-75N-TS + 75 V - 75 V 152 A 4000 W 22 U
150-75N-TS + 75 V - 75 V 190 A 5000 W 26 U
160-75N-TS + 75 V - 75 V 228 A 6000 W 30 U
180-75N-TS + 75 V - 75 V 304 A 8000 W 2 x 22 U
200-75N-TS + 75 V - 75 V 380 A 10000 W 2 x 26 U
220-75N-TS + 75 V - 75 V 456 A 12000 W 2 x 30 U
250-75N-TS + 75 V - 75 V 570 A 15000 W 3 x 26 U
280-75N-TS + 75 V - 75 V 684 A 18000 W 3 x 30 U
