4-Quadrant Current Amplifiers

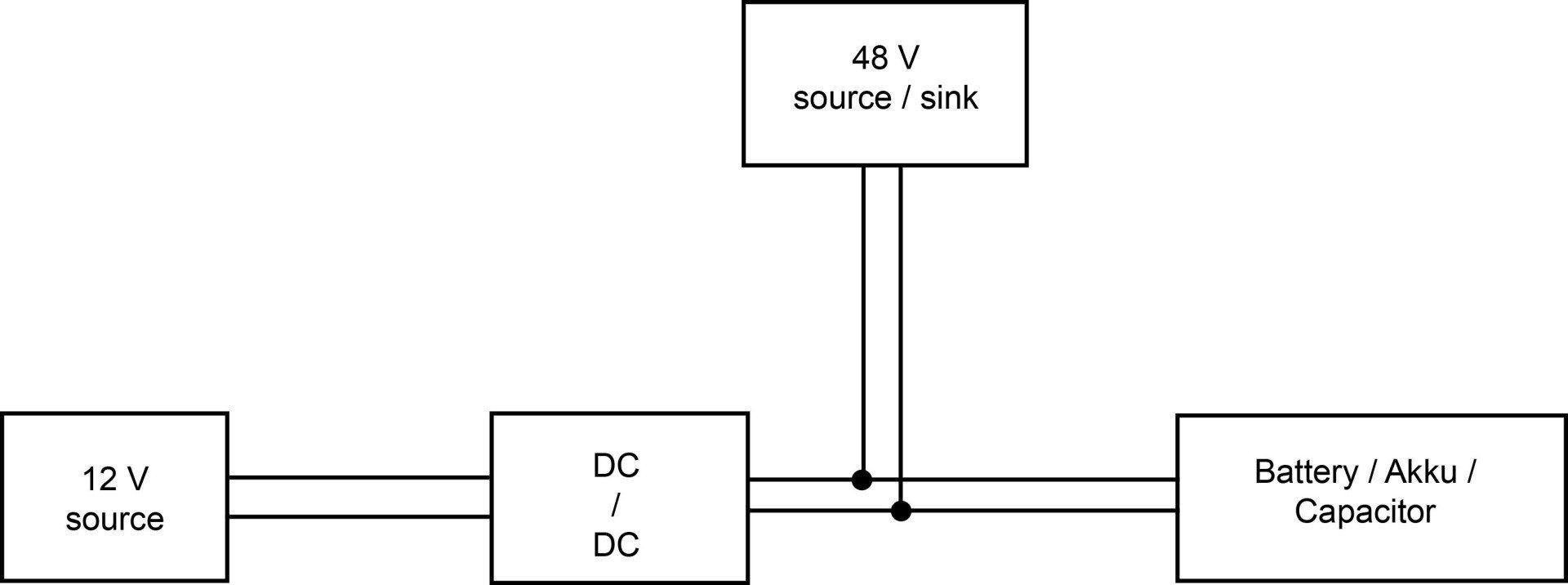

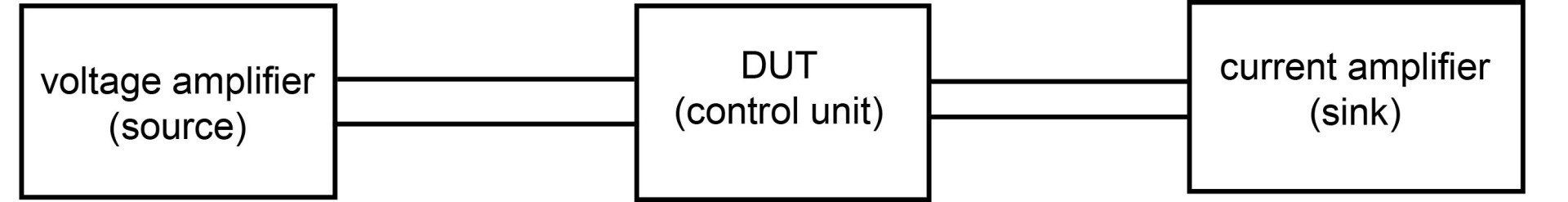

Current amplifier application

Current Amplifier

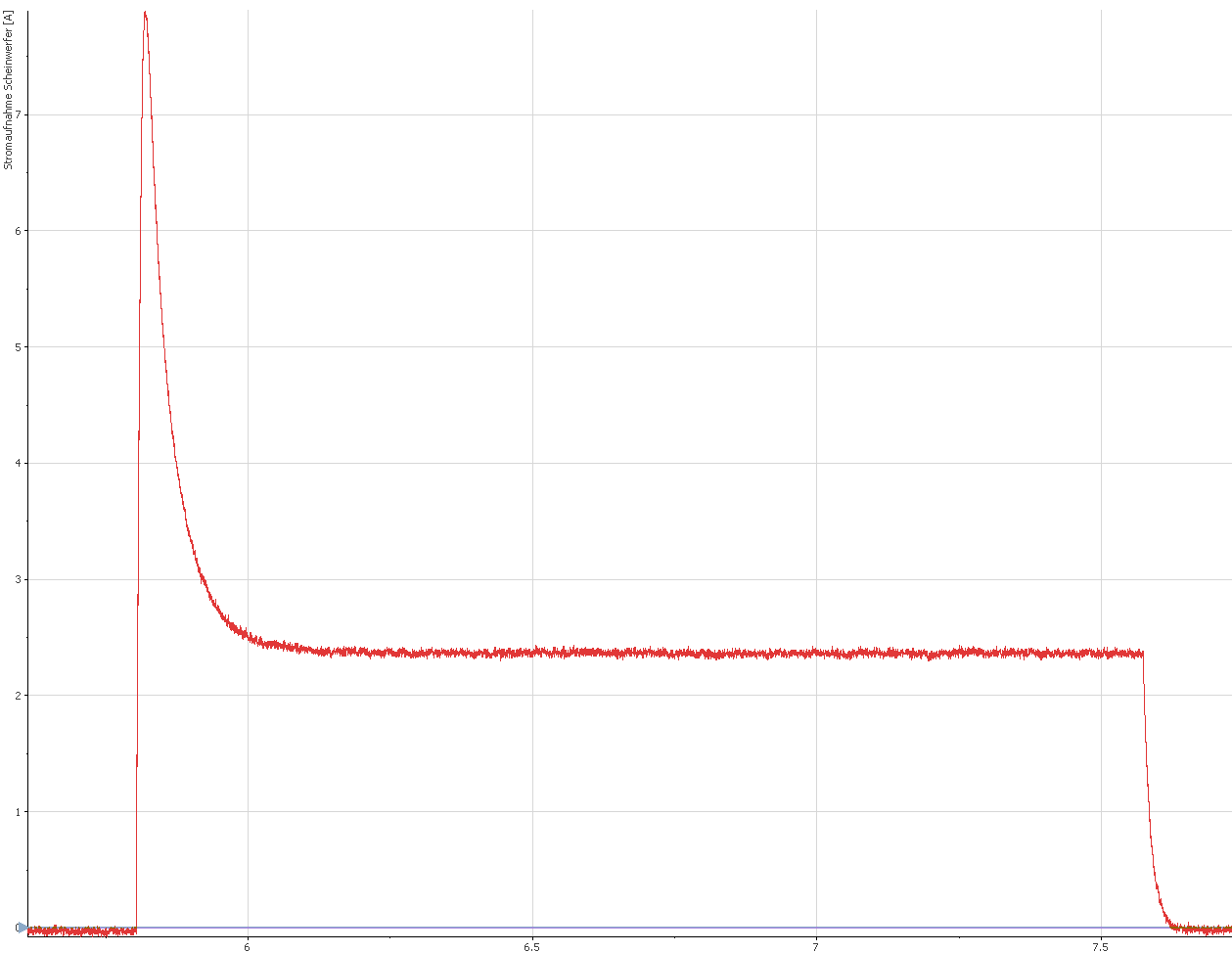

The current flow should be specified by the CSV file and the current profile should be started as soon as a voltage level of x volts is applied to the input with a rising edge.

Current Amplifier

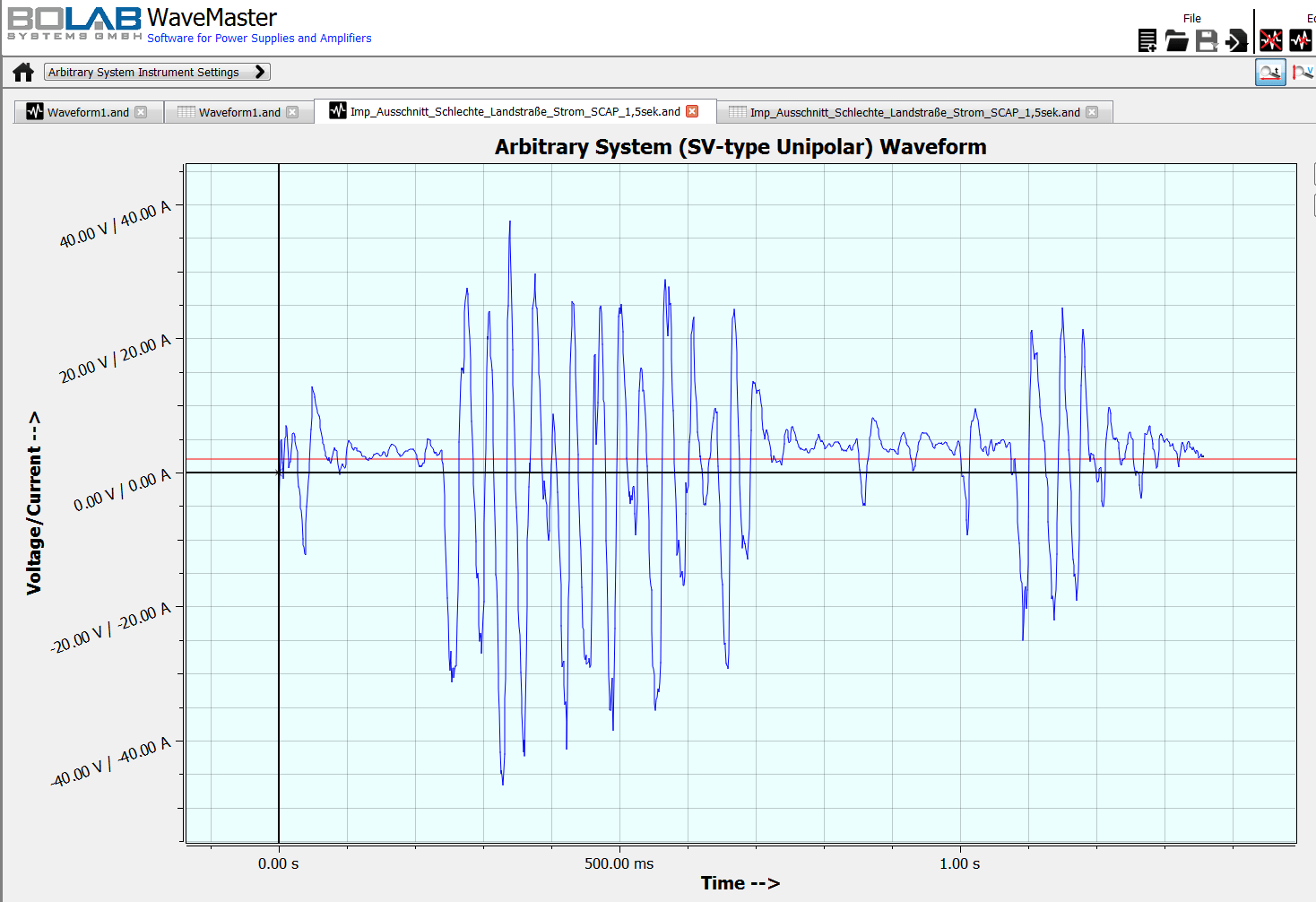

The CSV file contains the values as recorded in the vehicle. The absorbed current will be simulated by the source / sink operation. The file can then be displayed in an endless loop.




Current Amplifierr
Models 35 V Voltage max. Voltage min. Current Output power Dimensions
105-35R + 35 V - 30 V 20 A 400 W 3 U
110-35R + 35 V - 30 V 40 A 1000 W 4 U
120-35R + 35 V - 30 V 76 A 2000 W 14 U
130-35R + 35 V - 30 V 114 A 3000 W 18 U
140-35R + 35 V - 30 V 152 A 4000 W 22 U
150-35R + 35 V - 30 V 190 A 5000 W 26 U
160-35R + 35 V - 30 V 228 A 6000 W 30 U
180-35R + 35 V - 30 V 304 A 8000 W 2 x 22 U
200-35R + 35 V - 30 V 380 A 10000 W 2 x 26 U
220-35R + 35 V - 30 V 456 A 12000 W 2 x 30 U
250-35R + 35 V - 30 V 570 A 15000 W 3 x 26 U
280-35R + 35 V - 30 V 684 A 18000 W 3 x 30 U
Models 70 V Voltage max. Voltage min. Current Output power Dimensions
105-70R + 70 V - 30 V 15 A 500 W 3 U
110-70R + 70 V - 30 V 40 A 1000 W 4 U
120-70R + 70 V - 30 V 76 A 2000 W 14 U
130-70R + 70 V - 30 V 114 A 3000 W 18 U
140-70R + 70 V - 30 V 152 A 4000 W 22 U
150-70R + 70 V - 30 V 190 A 5000 W 26 U
160-70R + 70 V - 30 V 228 A 6000 W 30 U
180-70R + 70 V - 30 V 304 A 8000 W 2 x 22 U
200-70R + 70 V - 30 V 380 A 10000 W 2 x 26 U
220-70R + 70 V - 30 V 456 A 12000 W 2 x 30 U
250-70R + 70 V - 30 V 570 A 15000 W 3 x 26 U
280-70R + 70 V - 30 V 684 A 18000 W 3 x 30 U
Models 75 V Voltage max. Voltage min. Current Output power Dimensions
105-75N + 75 V - 75 V 11 A 500 W 3 U
110-75N + 75 V - 75 V 40 A 1000 W 4 U
120-75N + 75 V - 75 V 76 A 2000 W 14 U
130-75N + 75 V - 75 V 114 A 3000 W 18 U
140-75N + 75 V - 75 V 152 A 4000 W 22 U
150-75N + 75 V - 75 V 190 A 5000 W 26 U
160-75N + 75 V - 75 V 228 A 6000 W 30 U
180-75N + 75 V - 75 V 304 A 8000 W 2 x 22 U
200-75N + 75 V - 75 V 380 A 10000 W 2 x 26 U
220-75N + 75 V - 75 V 456 A 12000 W 2 x 30 U
250-75N + 75 V - 75 V 570 A 15000 W 3 x 26 U
280-75N + 75 V - 75 V 684 A 18000 W 3 x 30 U
