BOLAB - Your Expert for Innovative Testing Systems According to OEM Standards such as LV123, LV124, ISO16750, and other Standards

Our motivation: The passion for innovative testing solutions and our pursuit of excellence inspire us to develop products of the highest quality. These products aim to meet our customers' requirements and assist them in achieving their testing goals.

PRODUCTS

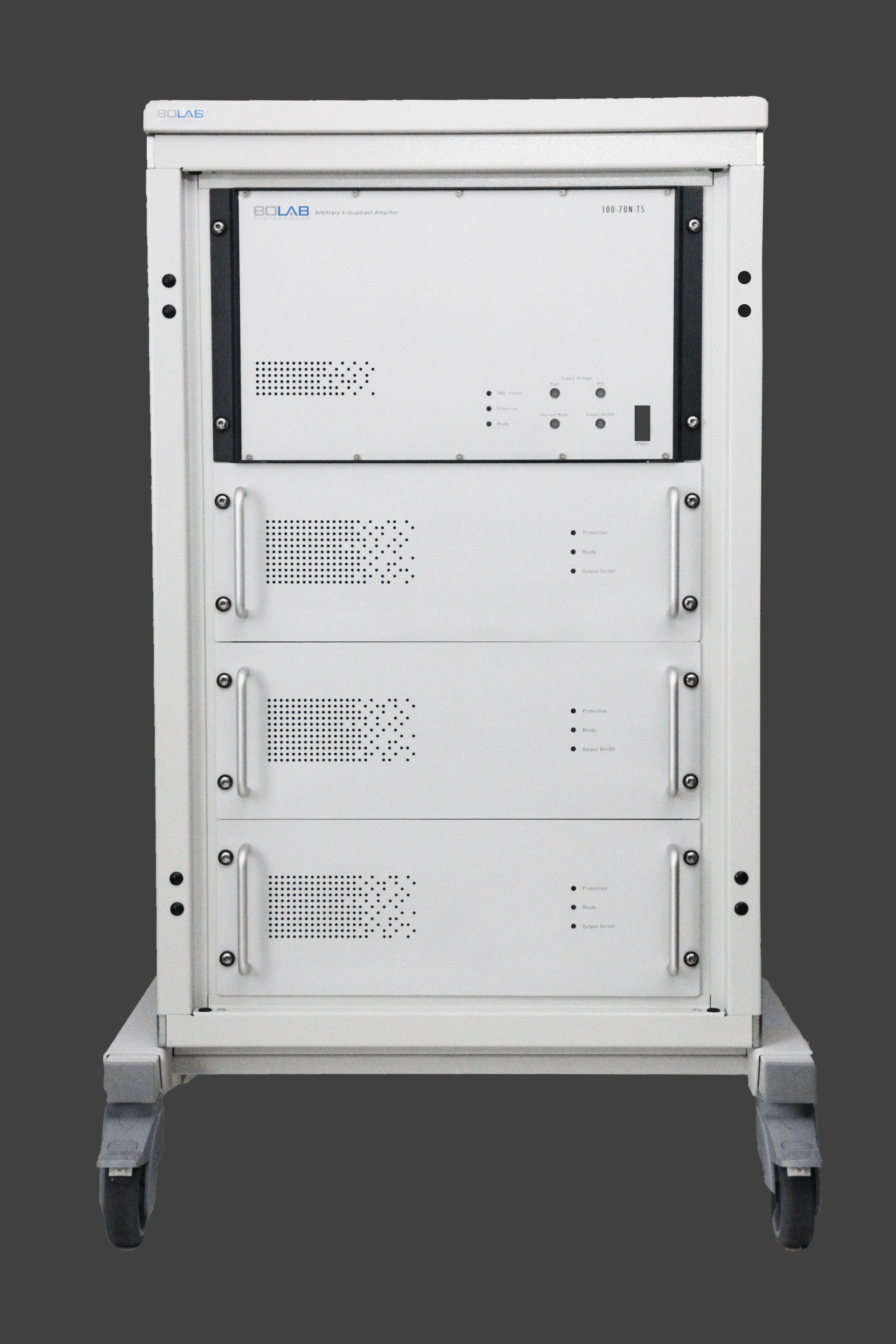

HV BATTERY TEST SYSTEMS FOR ELECTRIC VEHICLES

LV 123 | VW 80300 | VW 80303 | ISO/DIS 21498-2 | MBN LV123 | ISO 7637 | etc.

BOLAB revolutionizes high-voltage profile testing for electric vehicles with their new and unparalleled solutions. These powerful, flexible, and modular options cater to various testing needs.


Choose from three distinct solutions:


1. High-speed testing: Experience fast and accurate testing with extensive profile coverage.

2. Mid-range solution: Achieve balanced performance and comprehensive profile support.

3. Low-budget option: Cost-effective yet powerful, perfect for beginners and acquiring expertise.


With the remarkable WaveMaster software, testing becomes effortless. Whether you're a seasoned professional or a novice, creating simple or intricate waveforms is a seamless process. Utilize the intuitive graphical waveform editor or effortlessly generate waveforms through tabular input.


BOLAB's cutting-edge solutions and user-friendly software simplify and enhance high-voltage profile testing for electric vehicles, empowering you to achieve efficient and precise results.


See Details

36 kW ripple generator for BMW AG

July 2022: BMW AG places an order for 36 kW ripple generator with BOLAB Systems GmbH. This is to test inverters for BEV/PHEV vehicles in the voltage range up to 1000 V in accordance with the common standards LV 123, ISO 21498-2, BMW GS 95023, etc.

This modular system consists of three independently acting 4-quadrant amplifier systems with an output of 12 kW each. As an alternative to its use as universal individual systems, two or three of these systems can be operated in parallel for a total output of up to 36 kW. This parallel system design enables AC+DC currents of more than 1300 A. Future scalability of up to 54 kW output is ensured by the modular system concept.
In particular, the unique 4-quadrant amplifier solution is used to superimpose frequencies on the vehicle electrical system. This is possible for 12 V, 24 V, 48 V, as well as for high-voltage vehicle electric systems up to 1000 V. The intelligent solution approach of the serial operation of a high-voltage source with a BOLAB 4-quadrant amplifier system also allows not only the imprinting of interference frequencies such as AC voltages, but also short-term interference pulses. These include the load dump tests of the automotive standards. The almost loss-free serial coupling allows the continuous testing of the entire frequency range from 10 Hz to 150 KHz in one test run. This contrasts with the lossy inductive coupling transformer superimposition, in which several coupling transformers are necessary to switch between different frequency ranges.


Our customers trust BOLAB's unique solution and opt for the flexible implementation with the 4-quadrant amplifier systems.


Decisive features of BMW for the commissioning of BOLAB Systems GmbH were, among others:

  • Direct imprinting of the interference frequencies on the DC path
  • No coupling transformers necessary
  • No switching between the coupling transformers
  • Simple scalability


BOLAB Systems GmbH is pleased to once again convince in terms of modularity, flexibility and performance!

STANDARD LIBRARIES

WHY YOU SHOULD CHOOSE BOLAB

UNIQUE WAVMASTER SOFTWARE

Experience the power and simplicity of WaveMaster Software from BOLAB. Create ordinary and complex waveforms effortlessly, even without software development knowledge. Unleash the full potential of your testing capabilities with WaveMaster.

See Details

ONE SYSTEM FOR ALL TESTS

BOLAB provides a comprehensive, all-in-one Testsystem solution for your testing needs. With features like Arbitrary Function Generator, Voltage Amplifier, Current Amplifier, Voltage Measurement, Oszi/Data Acquisition, Current Measurement, and Electronic Load (Current Sink), you have everything you need in a single system. Streamline your testing process with BOLAB's versatile and efficient solution.

See Details

RENT A SYSTEM

Unlock the full potential of BOLAB Testsystem without the need to purchase your own system. We offer a flexible solution that allows you to rent a system for your planned or unplanned temporary projects. Experience the versatility and capabilities of our unique product without the long-term commitment. Take advantage of BOLAB's rental service and access the cutting-edge technology you need for your testing requirements.

See Details

ARTIFICIAL NETWORK

AN-SERIES

The AN-Series, an artificial network offered by BOLAB, is designed to accurately replicate the impedance of the vehicle power-net for component testing of voltage class B (high voltage) components. With its analog system boasting a bandwidth of up to 150 kHz, the AN-Series plays a critical role in ensuring the proper testing of such components in hybrid and electric vehicles. By effectively absorbing and reproducing interferences generated by the device under test, including ripple, dynamics, spikes, and other higher frequency noise, the artificial network creates conditions akin to those found in the high voltage power-net of vehicles.


This enables more comprehensive testing of component robustness and their ability to withstand internally generated noise. The utilization of the AN-Series artificial network not only brings efficiency and life-cycle testing closer to real-world conditions but also ensures compliance with standards such as ISO 21498, LV 123, IEC 61851-23, VW80300, MBN 11123, as well as internal norms. With the AN-Series, BOLAB provides a reliable solution that bridges the gap between laboratory testing and the demanding requirements of the automotive industry.

Download Data Sheet

SAVE THE DATE!

:
:
:
Days
Hours
Minutes
Seconds
Countdown finished!

Booth: 1454 Hall: 10

June, 4. - 6. 2024, Messe Stuttgart

A WORD ABOUT US

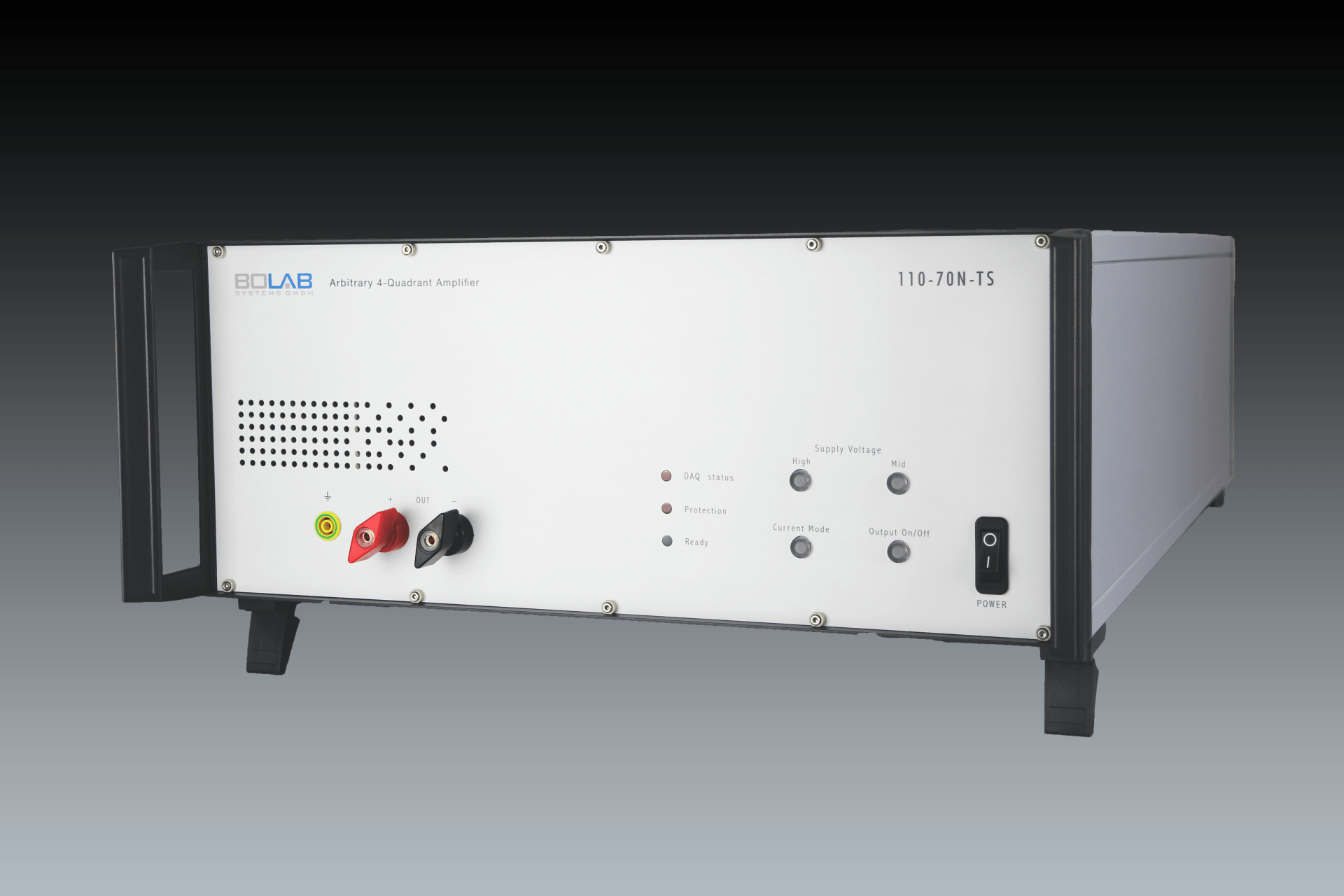

BOLAB Systems is a specialized engineering and manufacturing company that excels in the development, production, and distribution of modular 4-Quadrant voltage and current amplifiers. With a wealth of knowledge and expertise, we cater to various industries including aerospace, defense, automotive, and institutions, providing cutting-edge solutions for a wide range of applications.


Our high-power voltage and current amplifiers are designed to meet the demanding requirements of these industries, offering exceptional performance and reliability. Whether it's in the field of aerospace, defense, automotive, or other sectors, our products are trusted for their quality and precision.


At BOLAB Systems, we pride ourselves on our comprehensive understanding of the industry and our ability to deliver tailored solutions to our customers. Our team of experts is dedicated to providing the highest level of service and support, ensuring that our customers receive the best possible solutions for their specific needs.


Choose BOLAB Systems for your engineering and manufacturing requirements, and experience the difference that our specialized knowledge and expertise can make.

See Details

OUR CUSTOMERS

quotesArtboard 1 copy 2

As a customer of BOLAB Systems, I am extremely satisfied with their services. The expertise and knowledge of their team in the field of electrical testing are exceptional. They have responded to my questions quickly and accurately, providing me with valuable support for my projects.


I was particularly impressed with the fast delivery time. I received my products in a timely manner, allowing me to complete my projects without any delays. The customer support has also been outstanding. Whenever I encountered any issues, they were always there to assist me and efficiently help troubleshoot any problems.


Another significant advantage is the option to rent additional power resources. This has allowed me to flexibly expand my capabilities without making substantial investments.


Overall, I highly recommend BOLAB Systems. Their expertise, prompt responses, fast delivery, and comprehensive solutions have exceeded my expectations. I am highly satisfied and will gladly continue to avail myself of their services.
